Mespack MS-Series

Packaging Machines

Stick-pack Machines

Stick packs are an ideal presentation for liquids, powder, granules & pieces. Widely used for food or diet products, home & personal care, confectionary, pharmaceutical amongst many others.

The MS Series are built in a mono-block tubular heavy duty steel frame designed to provide free access to all sides of the machine as well as facilitate the maintenance procedures. Fully guarded machine with interlocked magnetic security switches. Machines can be equipped with multiple dosing system configurations as well as special motorized systems for easy cleaning.

The MS Series offer a flexible choice of full-servo machines, ATEX compliance, laminar flow, film sterilization system, laser coders and scorers, etc., are some of the possibilities that can be installed in the machine on request. Our goal is to continue to lead the market with an outstanding machine for a multitude of products that need high speed and reliable production. Our long experience in flexible packaging concepts and the acquired skills and know-how makes our products unique as regards quality and performance.

Mespack MS-600 Stick Pack Machine

A less complex machine to cover low or medium stick pack productions for any type of product – regardless of being in powder, granular or liquid

The technology installed for the manufacture of MS-600 allows high production with special requirements

Main features:

· Maximum reel width 600 MM
· Open tube frame
· Compact design
· Speeds up to 75 strokes per minute
· Integrated electrical cabinet (independent optional)
· Free access to operating side of the machine
· Free access to the inside of the machine for maintenance
· PLC controlled auto lubrication
· 12” Allen-Bradley colour touch screen
· Servo driven main film drive system
· Pneumatical expandible reel shaft
· Hygienic design
· Drives inside the frame
· Full servo (on request)
· ATEX compliance (on request)
· Laser coder & scorers (on request)

Mespack MS-1000 Stick Pack Machine

The latest technology in a stick pack machines

The range varies from 4 to 16 lanes depending on the width of the stick-pack

Available with different types of fillers to fill liquids, granules and powders.

Main features:

· Full Servo
· Maximum roll width 1000 mm
· Monobloc tubular steel structure
· Compact design
· Production of up to 75 strokes per minute
· Integrated electrical cabinet
· Easy access to all parts of the machine
· Easy access to perform maintenance
· Adjustable cutting blades (smooth or zig-zag)
· Servo-motorized horizontal jaws
· Servo-motorized cutting rollers
· Automatic lubrication through the PLC
· PLC with independent temperature control system
· Transparent polycarbonate protections with safety magnetic detectors
· 12 color touch screen Allen-Bradley
· Drag of the servo-motorized film
· Pneumatic expandable coil shaft
· Hygienic design
· Built-in motorization within the main structure

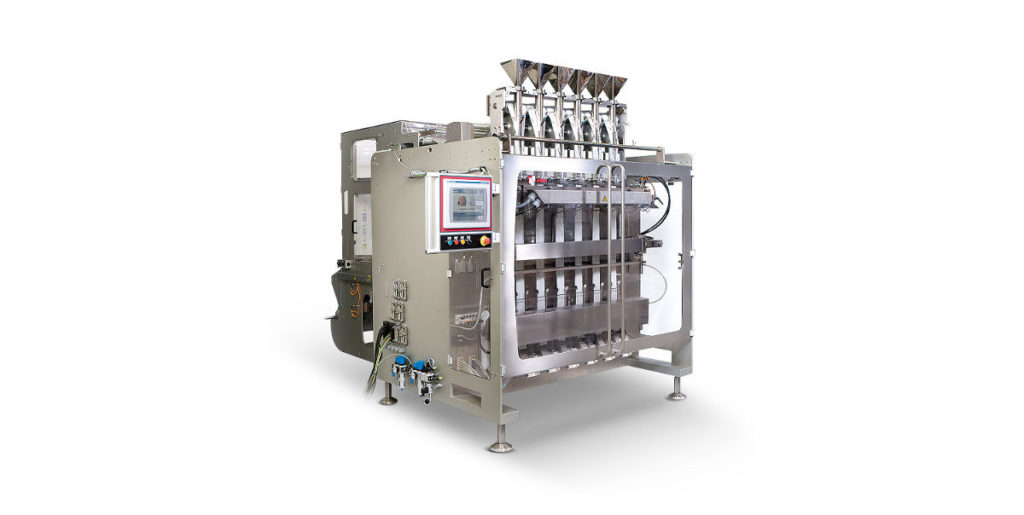

Mespack MS-1200 Stick Pack Machine

The MS-1200 is the only stick-pack maker that allows 6 x 90 mm width per stroke and 300 sticks/pillow bags per minute.

An outstanding machine for many types of products that need high speed dedicated production.

Ideal for food or diet products, home & personal care applications, confectionaries, pharmaceuticals and more.

Designed to run reels up to 1200 mm in width, these machines feature new servo drive technology and hygienic design.

This unit can be supplied with augers or volumetric systems, flowmeters and also can include a six tube multihead weigher.

Various accessories are available on request.

Main features:

· Full servo motorized equipment
· Maximum reel width of 1200 mm
· Monobloc tubular steel structure
· Compact design
· Production of up to 75 strokes per minute
· Integrated electrical cabinet
· Easy access to all parts of the machine
· Easy access to perform maintenance
· Adjustable cutting blades (smooth or zig-zag)
· Servo-motorized horizontal jaws
· Servo-motorized cutting rollers
· Automatic lubrication through the PLC
· PLC with independent temperature control system
· Transparent polycarbonate protections with safety magnetic detectors
· 12 color touch screen Allen-Bradley
· Drag of the servo-motorized film
· Pneumatic expandable coil shaft
· Hygienic design
· Built-in motorization within the main structure
