Mespack H-Series

Packaging Machines

Low, medium and large fill volumes

The H-Series is remarkable for its flexibility and the possibility of producing different shapes and pack presentations, flat or stand up pouches, cap fitments, straw attachments and resealable zipper systems.

16 Different machines. Machines are listed according to model numbers.

Mespack H-100: Small Sachets for powders, granulars and liquids

Small, compact, flexible, H-100 is remarkable for its versatility, high efficiency and low cost.

High speed flat sachet equipment for small formats

Suitable for both single or stringed sachets. It can incorporate a wide range of accessories as date coders, notches, hole punchers, towelette fillers, etc.

It allows to mount a variety of different types of fillers, cup fillers for granules or free-flowing product, auger fillers for powders or pump fillers for liquid or viscous products

Production speeds up to 100 ppm

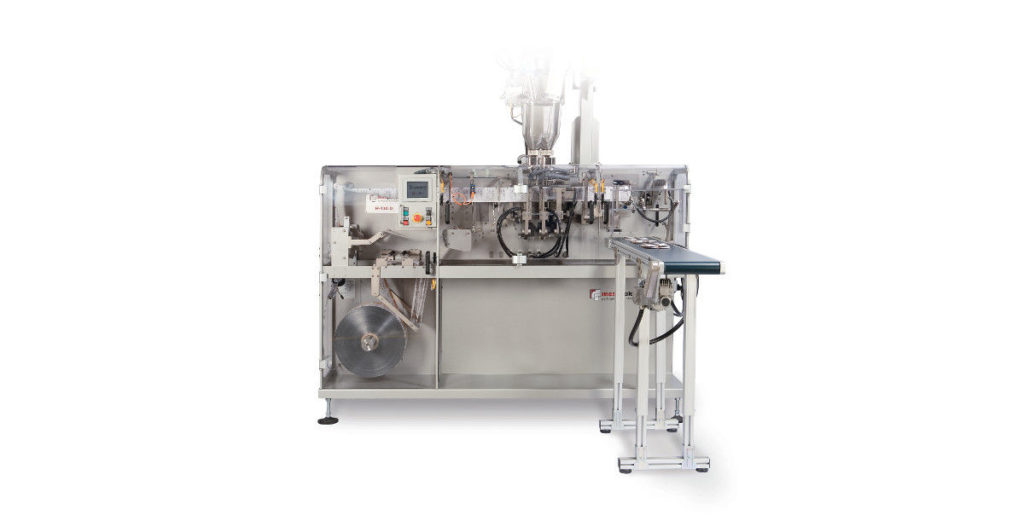

Mespack H-130: Small Duplex Sachets for powders, granulars and liquids

The H-130 is a medium size machine which can be used both in simplex or duplex operation.

High speed HFFS equipment for flat sachet producing up to 200 pouches per minute

Multiple possibilities of up to 200 ppm

When set for duplex it produces two sachets for its machine stroke with capacity up to 200 sachets a minute.

Main application is for twin or stringed sachets which may contain same or different products, i.e. coffee-milk, sugar-salt, ketchup-mayonnaise.

Another wide extended use for this machine is in the cosmetic industry for creams, lotions or refreshing towelettes.

Different types of fillers can be used according to the characteristics of the product.

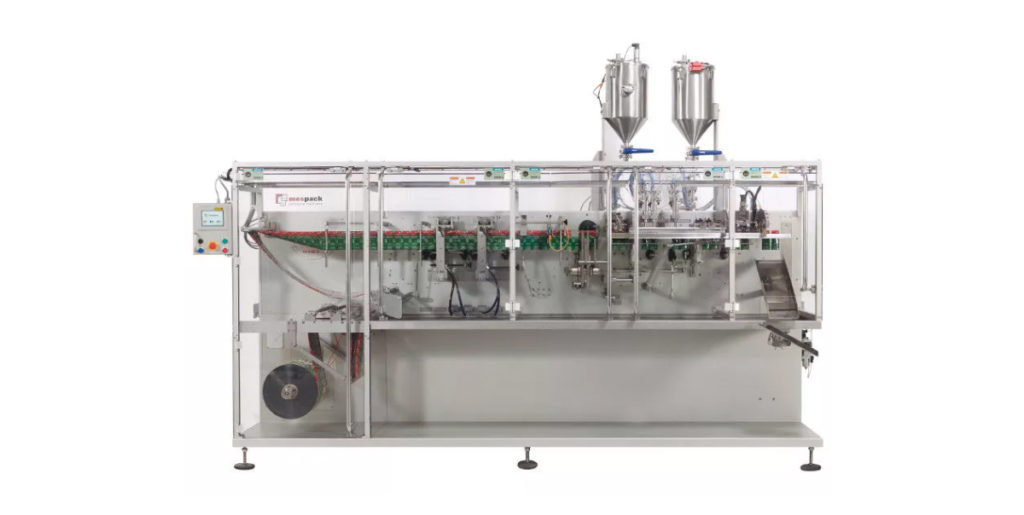

Mespack H-140: Medium Sachets 3 mixed components

The H-140 has been designed to produce medium size sachets and it is remarkable for its simplicity and user friendly operation

High speed HFFS equipment for flat sachet producing up to 100 pouches per minute

Flexible, rugged and reliable

Reduced in size it allows to fill up to three different components into the same sachet

Ideal for soup products where medium capacity is needed (up to 100 sachets/minute) and it’s very reasonably priced

Low maintenance and change over simplicity are a plus in this model. Full range of filling heads combinations

Mespack H-145: 500cc Stand up Pouch 2 mixed components

The H-145 can automatically fill powders, granules, liquids or pasty products, offering a variety of fillers to suit each specific product.

Smallest, most compact and competitive machine capable of forming, filling and sealing stand up pouches

Low cost stand up pouch up to 500 CC

The pack presentation and shape can also be chosen from the wide range of available possibilities, shaped pouches, zip-lock features, cap fitments to facilitate product dispensing

This model has two filling stations to fill one or more products into the same pouch

Integrated electrics in the main machine frame, thus this unit fits in reduced floor space.

Human Machine Interface (HMI) through a 12” colour touch screen. This allows to control all functions of the machine, change fill dose, modify the temperature of the respective seal bars, increase or decrease the speed of the machine as well as to obtain all production data, machine efficiency etc.

Mespack H-150: 900cc Flat Sachets / Stand up Pouches

The H-150 is a machine designed to produce medium size flat sachet and stand-up pouches with different fitments

Producing up to 900cc pouches, this machine is indicated for frozen foods, prepared foods, sauces & condiments, powders or liquids, beverages, dried fruits, snacks, confectionaries, dry mixes, and more

The H-150 can be supplied with the following main features:



  • Independent electrical cabinet
  • Independent unwinding system
  • Automatic adjustment control of seal jaws position
  • Automatic hole punch correction system for stand-up pouches
  • Servo driven changeover system for forming plough
  • Triple pouch opening system through a vacuum, air jet and mechanical device
  • Three different filling stations
  • Cam driven walking beam
  • Pouch grippers engineered to hold up to 2 kg
  • Static pouch stretching prior to sealing
  • Pouch reject station
  • PLC automatic lubrication system
Mespack H-170: Medium size Flat Sachets / Large Stand up Pouches

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Mespack H-180: 1500cc Pouches with Cap

The H-180 is a machine designed to produce medium size flat sachet and stand-up pouches with different fitments.

Producing up to 1.500cc pouches, this machine is indicated for frozen foods, prepared foods, sauces & condiments, powders or liquids, beverages, dried fruits, snacks, confectionaries, dry mixes, and more

Equipment to produce pouches of up to 1.500cc with top or edge cap

The H-180 can be supplied with the following main features:



  • Independent electrical cabinet
  • Independent unwinding system
  • Automatic adjustment control of seal jaws position
  • Automatic hole punch correction system for stand-up pouches
  • Servo driven changeover system for forming plough
  • Triple pouch opening system through a vacuum, air jet and mechanical device
  • Three different filling stations
  • Cam driven walking beam
  • Pouch grippers engineered to hold up to 2 kg
  • Static pouch stretching prior to sealing
  • Pouch reject station
  • PLC automatic lubrication system
Mespack H-220: 2000cc Sachet / Pouch / Doypack with Straw

The H-220 is a machine designed to produce small and medium size flat sachet and stand-up pouches with cap or straw, indicated for beverage solutions. Multiple fitments and applications can be installed upon request

High capacity equipment producing beverage pouches of up to 2.000cc with straw

Equipment for flat sachet and doypack with straw applicator

Main features:



  • Independent electrical cabinet
  • Independent unwind system
  • Automatic adjustment control of seal jaws position
  • Automatic hole punch correction system for stand up pouches
  • Servo driven change over system for forming plough
  • Triple pouch opening system through a vacuum, air jet & mechanical device
  • 3 different filling stations
  • Cam driven walking beam
  • Pouch grippers engineered to hold up to 2 Kg
  • Static pouch stretching prior to sealing
  • Pouch reject station
  • PLC automatic lubrication system
Mespack H-260: 2500cc Pouches with Cap

The H-260 is a machine designed to produce small and medium size flat sachet and stand-up pouches with edge cap, regardless of being a powder or liquid product

Multiple fitments and applications can be installed upon request

Equipment with 5 filling stations producing pouches of up to 2500cc with edge cap

Main features:

·Independent electrical cabinet
·Independent unwind system
·Automatic adjustment control of seal jaws position
·Automatic hole punch correction system for stand-up pouches
·Servo driven changeover system for forming plough
·Triple pouch opening system through vacuum, air jet and mechanical device
·Three different filling stations
·Cam driven walking beam
·Pouch grippers engineered to hold up to 2 kg
·Static pouch stretching prior to sealing
·Pouch reject station
·PLC automatic lubrication system

Mespack H-320: Small Doypack Formats

The H-320 is the indicated machine to cover high speed production needs for small and medium size flat sachet and stand-up pouches. Multiple fitments and applications can be installed upon request

Machine designed to produce small doypack formats at high speed

Triplex and quadruplex applications

Main features:

  • Independent electrical cabinet
  • Independent unwind system
  • Automatic adjustment control of seal jaws position
  • Automatic hole punch correction system for stand-up pouches
  • Servo driven changeover system for forming plough
  • Triple pouch opening system through a vacuum, air jet and mechanical device
  • Three different filling stations
  • Cam driven walking beam
  • Pouch grippers engineered to hold up to 2 kg
  • Static pouch stretching prior to sealing
  • Pouch reject station
  • PLC automatic lubrication system

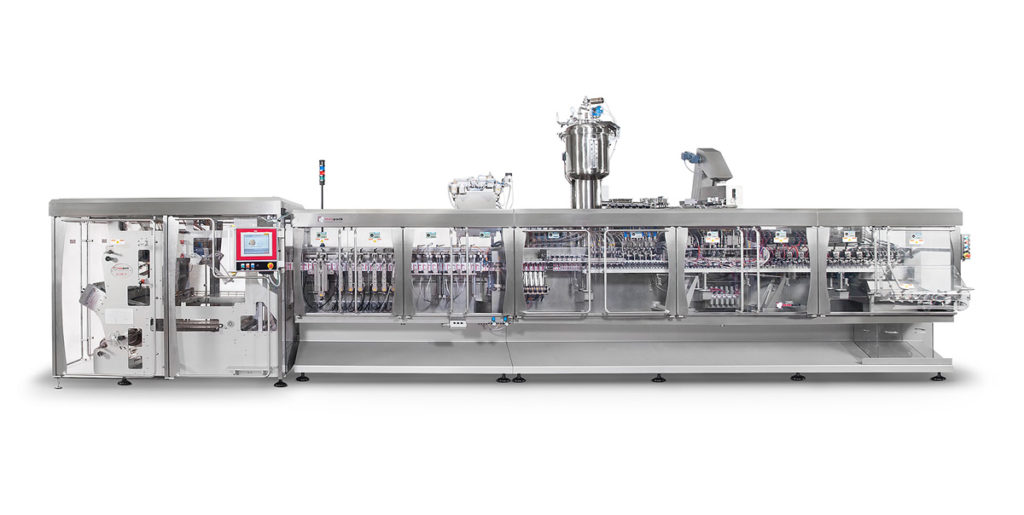

Mespack H-330: 40cc Pouches with Cap / Spout

The H-330 is a machine designed to produce small size flat sachet and stand-up pouches with small top cap

It offers high production capacity thanks to its sextuplex version

High capacity equipment for cosmetics pouches with small top spout

Main features:

  • Independent electrical cabinet
  • Independent unwind system
  • Automatic adjustment control of seal jaws position
  • Automatic hole punch correction system for stand up pouches
  • Servo driven changeover system for forming plough
  • Triple pouch opening system through a vacuum, air jet and mechanical device
  • Three different filling stations
  • Cam driven walking beam
  • Pouch grippers engineered to hold up to 2 kg
  • Static pouch stretching prior to sealing
  • Pouch reject station
  • PLC automatic lubrication system
Mespack H-360: 3000cc Sachet / Pouch Retort

The H-360 is a machine designed to produce small and medium size flat sachet and stand-up pouches with the possibility of retort application

Multiple fitments and applications can be installed upon request

Retort applications for small and medium size pouches

Main features:

  • Independent electrical cabinet
  • Independent unwind system
  • Automatic adjustment control of seal jaws position
  • Automatic hole punch correction system for stand up pouches
  • Servo driven changeover system for forming plough
  • Triple pouch opening system through vacuum, air jet and mechanical device
  • Three different filling stations
  • Cam driven walking beam
  • Pouch grippers engineered to hold up to 2 kg
  • Static pouch stretching prior to sealing
  • Pouch reject station
  • PLC automatic lubrication system
Mespack H-420: 10kg Pouches

The H-420 is specially designed with stronger grippers and transport system to allow high production of heavy flat and stand-up pouches

Multiple fitments and applications can be installed upon request

Equipment designed for high capacity production of pouches up to 10kg

The solution for large volumes

Main features:



  • Independent electrical cabinet
  • Independent unwind system
  • Automatic adjustment control of seal jaws position
  • Automatic hole punch correction system for stand up pouches
  • Servo driven changeover system for forming plough
  • Triple pouch opening system through vacuum, air jet and mechanical device
  • Three different filling stations
  • Cam driven walking beam
  • Pouch grippers engineered to hold up to 2 kg
  • Static pouch stretching prior to sealing
  • Pouch reject station
  • PLC automatic lubrication system
Mespack H-440: 850cc Flat Sachet / Stand up Pouches

The H-440 offers high speed solutions for small and medium flat sachet and stand-up pouch of up to 110mm width in quadruplex version

Multiple fitments and applications can be installed upon request

Main features:



  • Independent electrical cabinet
  • Independent unwind system
  • Automatic adjustment control of seal jaws position
  • Automatic hole punch correction system for stand up pouches
  • Servo driven changeover system for forming plough
  • Triple pouch opening system through a vacuum, air jet and mechanical device
  • Three different filling stations
  • Cam driven walking beam
  • Pouch grippers engineered to hold up to 2 kg
  • Static pouch stretching prior to sealing
  • Pouch reject station
  • PLC automatic lubrication system
Mespack H-540: 200cc Pouches with choke-proof Spout

High production capacity of small format stand-up pouches for baby food industry

The H-540-FE6 is a high capacity packaging machine for the food and beverage industry

Equipment specially designed for baby food production producing between 300 and 360 pouches per minute with top choke-proof spout

This equipment incorporates a servo-motorized pouch moving system to guarantee precision and accuracy while reducing product and film waste

It’s specifically designed for high volume production of pouches with a top spout, and meets the safety cleanliness and performance needs of the baby food industry

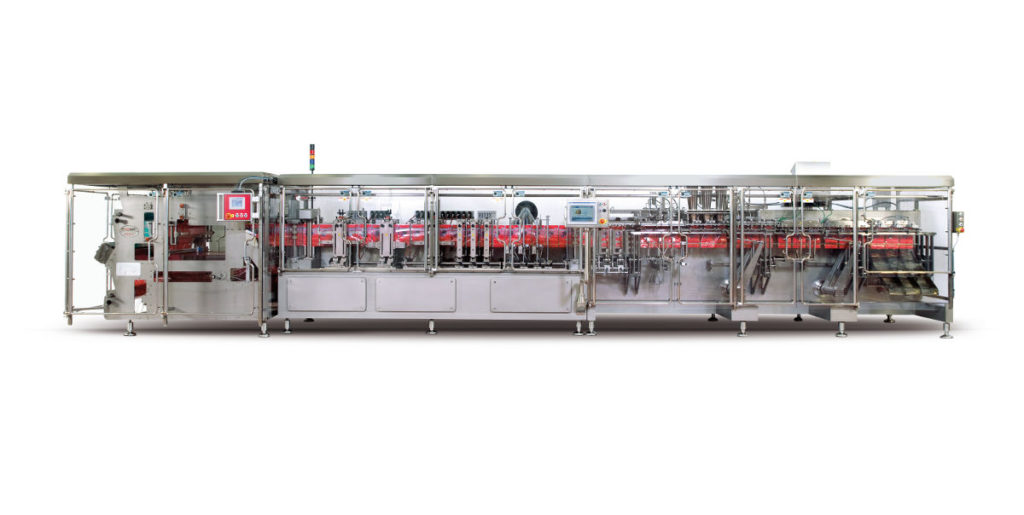

Mespack H-570: 16000cc Flat Sachet / Stand up Pouches

The H-570 is designed to offer solutions for large stand-up pouch and flat sachet formats. Multiple fitments and applications can be installed upon request

High capacity equipment for big format stand-up pouch

Triplex features up to 190mm width pouches

Main features:



  • Independent electrical cabinet
  • Independent unwind system
  • Automatic adjustment control of seal jaws position
  • Automatic hole punch correction system for stand up pouches
  • Servo driven changeover system for forming plough
  • Triple pouch opening system through a vacuum, air jet and mechanical device
  • Three different filling stations
  • Cam driven walking beam
  • Pouch grippers engineered to hold up to 2 kg
  • Static pouch stretching prior to sealing
  • Pouch reject station
  • PLC automatic lubrication system
